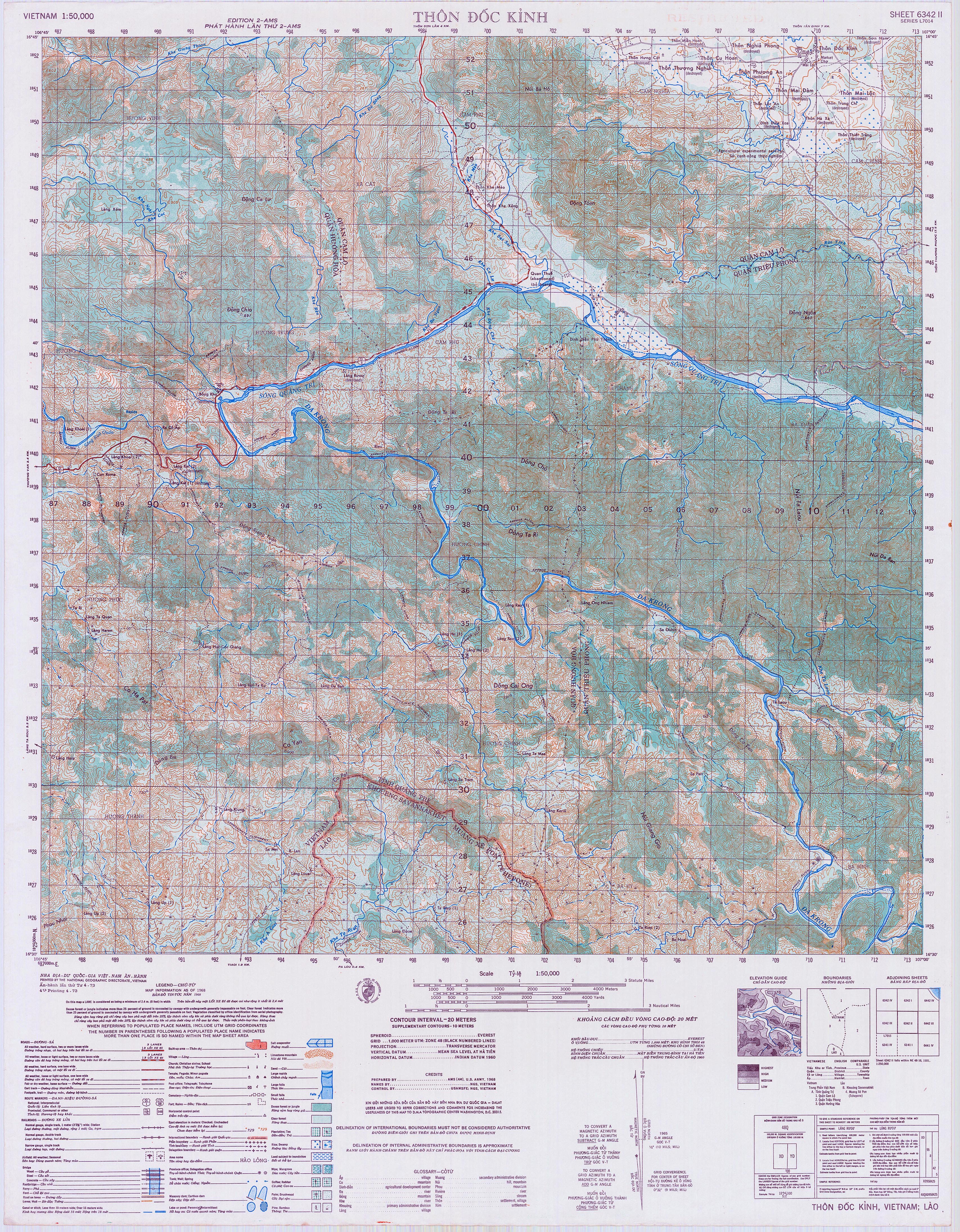

On the left is a sample 1:50,000 scale map sheet. The grids are one kilometer square and a unit would cover no more than one or two kilometers on a typical day.

The upper right of a map sheet will have the sheet number such as "Sheet 6442 II." There is a grouping of four maps in the 6442 group as an example: they form a square with 6442 I (top right), 6442 II (bottom right), 6442 III (bottom left), and 6442 IV (top left).

Click on the map description below to see the actual tactical map. You can zoom your browser to see the details in a grid coordinate - about 400% zoom works well.

Most of the map sheets used by Charlie Company in 1969 and 1970 are listed in the table below. In summer 2008, these maps were available from the U.S. Geological Survey, Box 25286, DFC, Building 810, Denver, CO 80225-0046. Telephone: 1-888-ASK-USGS.

In the map description column are the larger grid zone designators such as YC and YD. Next are the grids with the lower left followed by the upper right. 8752 means the 87 north-south grid line intersecting the 52 east-west line. Firebase Currahee is listed at YC 399949. Only the 6441-III map sheet below contains this location.

1:50,000 tactical maps of Charlie Company AO's

Map description	Old map ref	New map ref
Mapsheets South 1967-1968 period

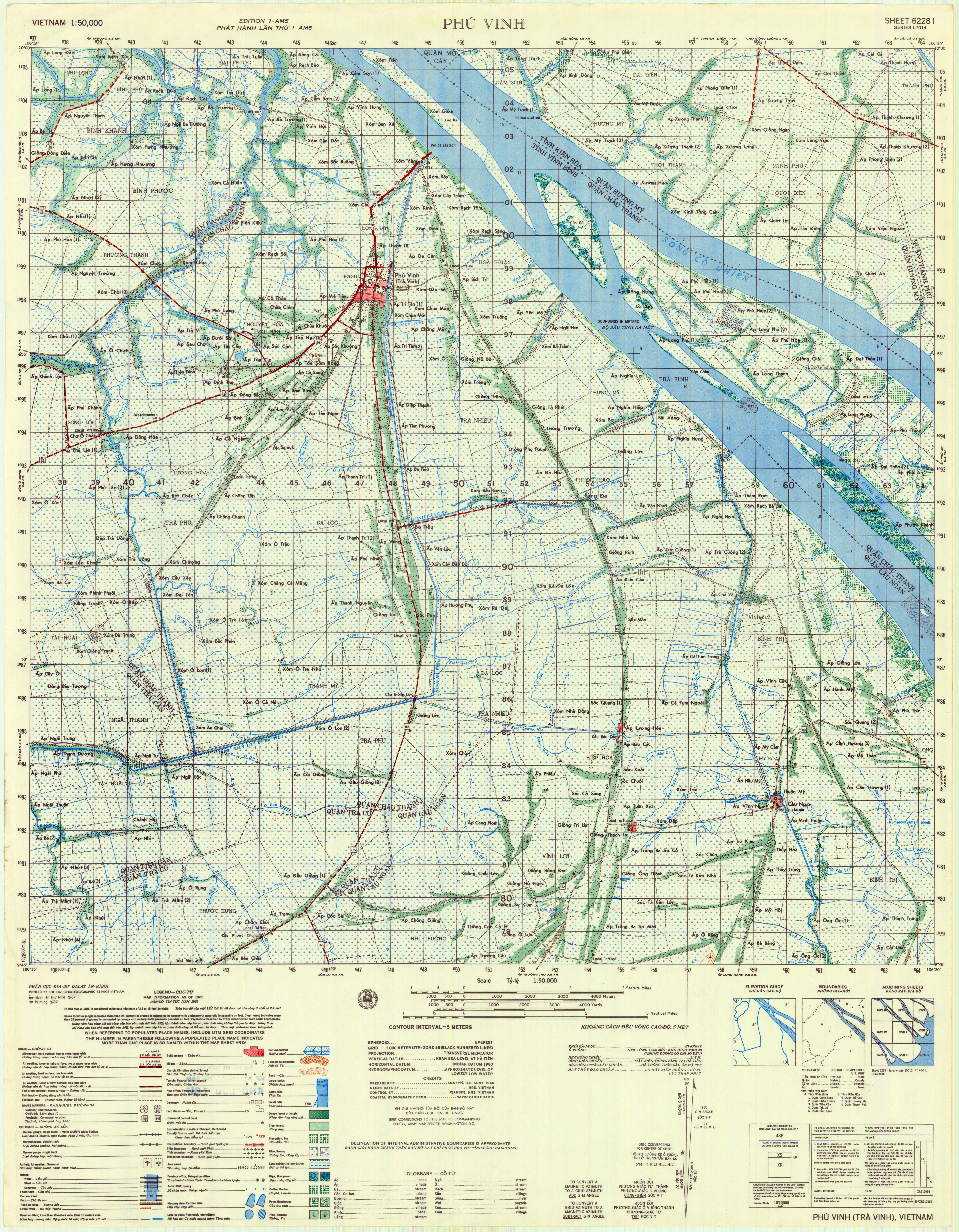

Phu Vinh, Viet Nam (XS on top, XR below: from 3878 to 6405 )	TL70146228-I

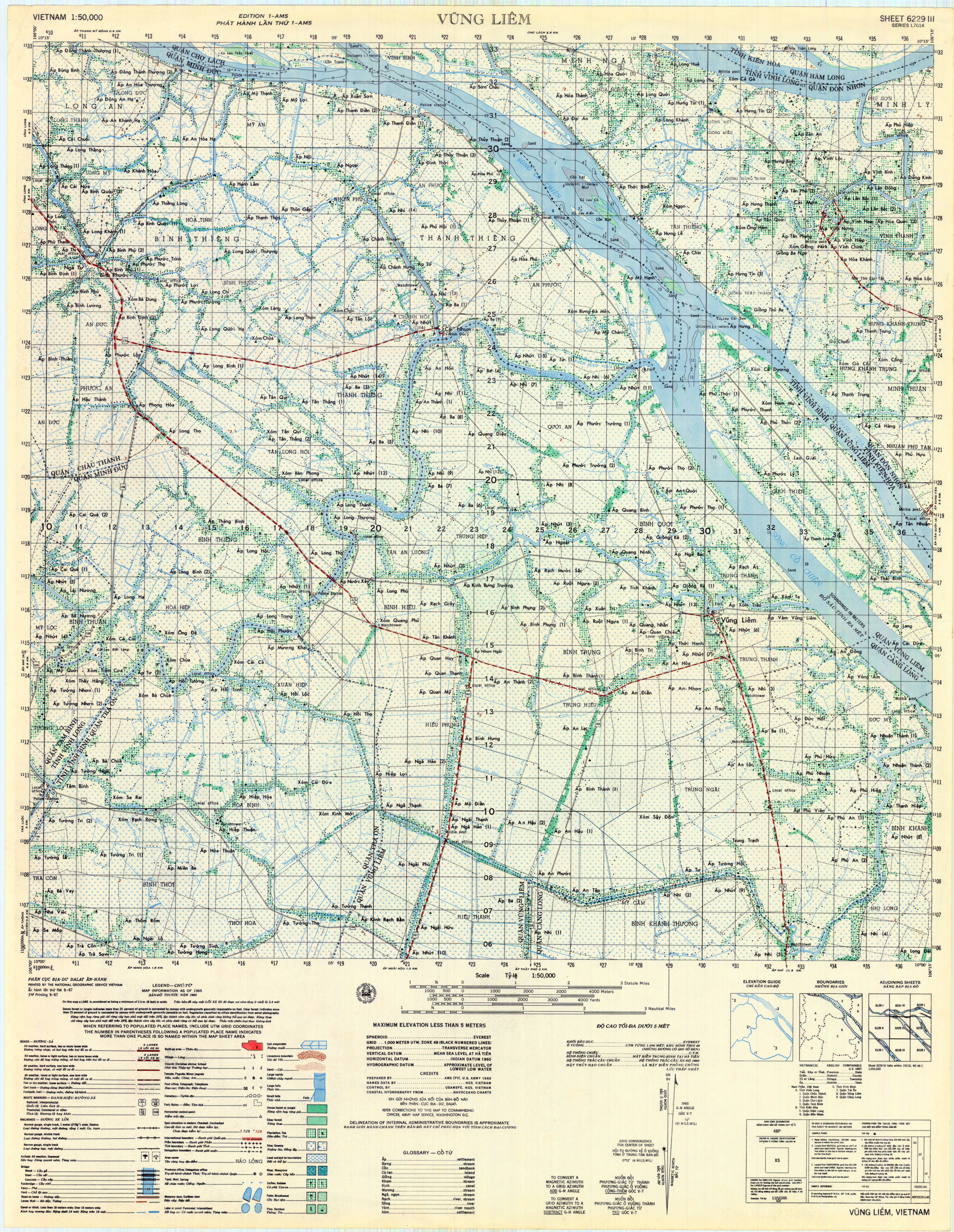

Vung Liem, Viet Nam (XS: 1006 to 3733)	TL70146229-III

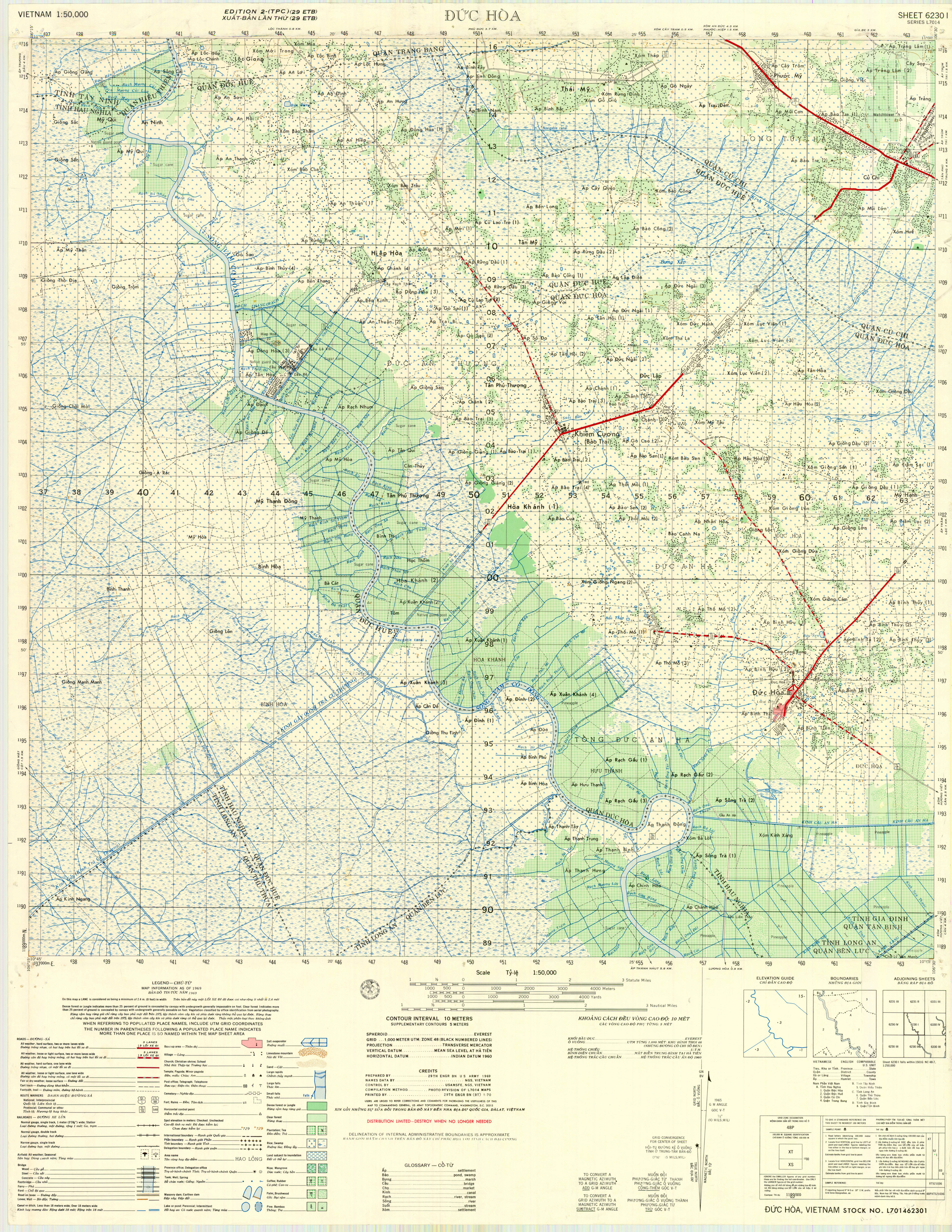

Duc Hoa, Viet Nam (XT on top, XS below: 3789 to 6416)	TL70146230-I
Tan An, Viet Nam (XS: 3761 to 6488)	TL70146230-II
Duc Hue, Viet Nam (XT on top, XS below: 1089 to 3716)	TL70146230-IV

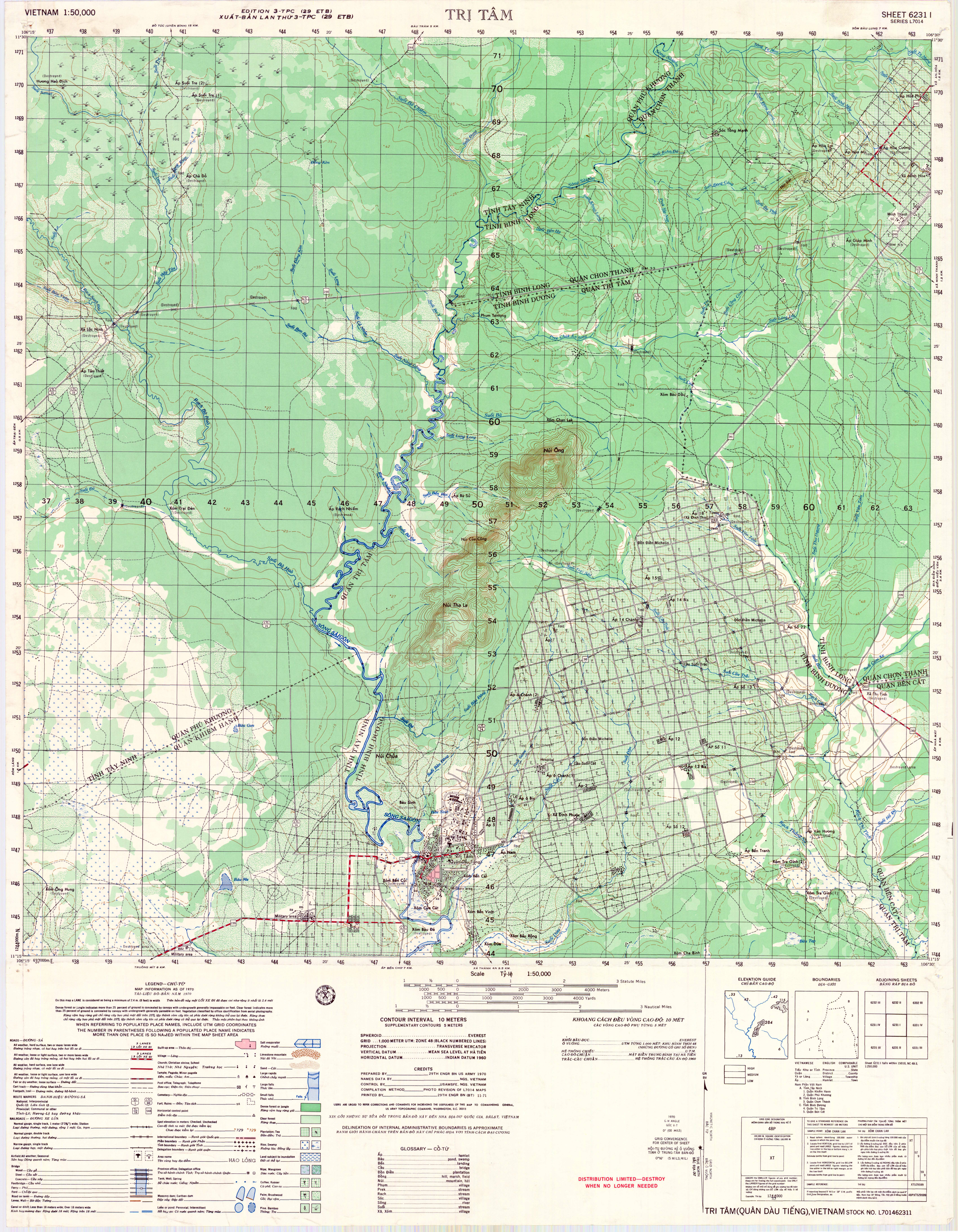

Tri Tam, Viet Nam (XT:3744 to 6371)	TL70146231-I

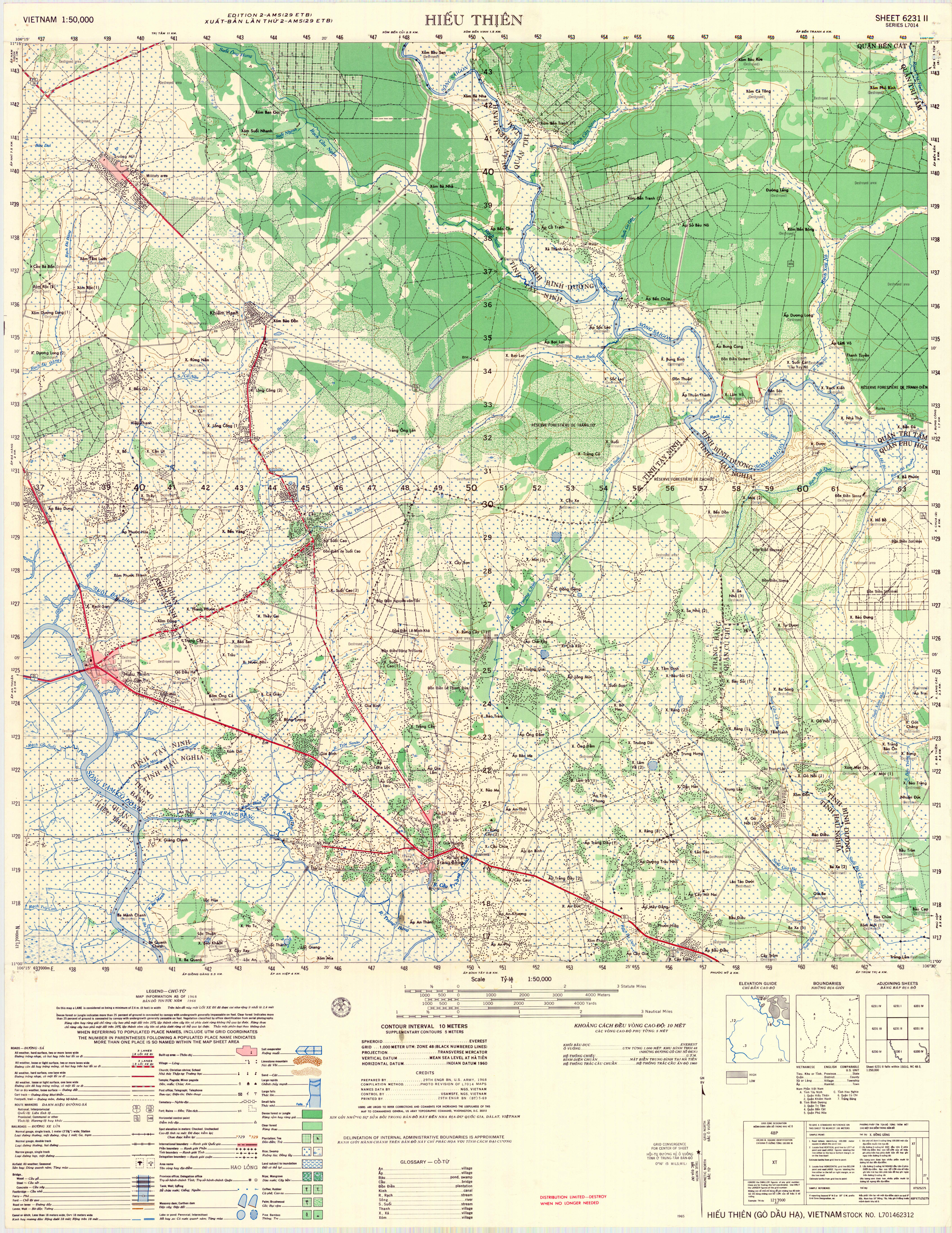

Hieu Thien, Viet Nam (XT: 3717 to 6343)	TL70146231-II

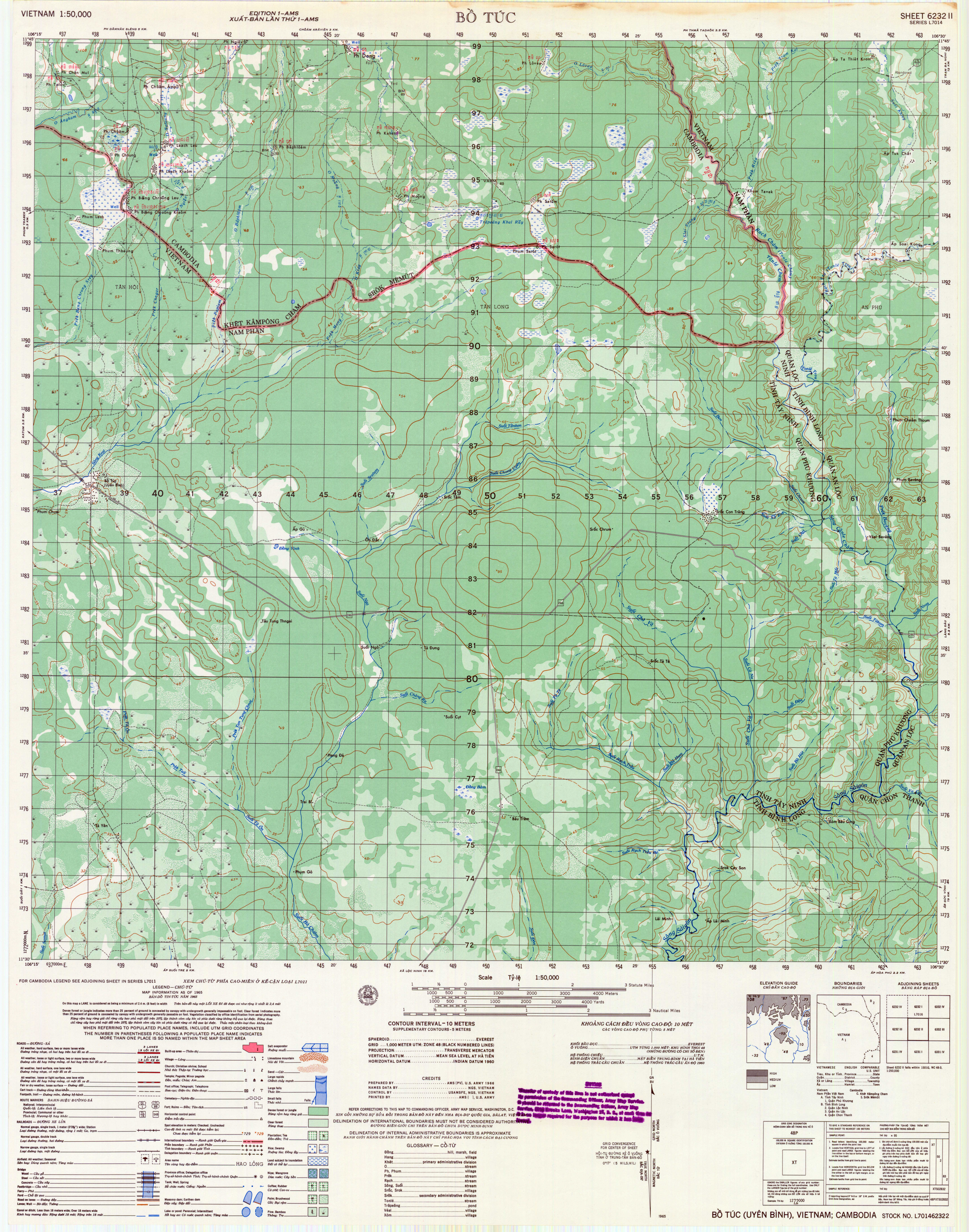

Bo Tuc, Viet Nam (XT: 3772 to 6399)	TL70146232-II

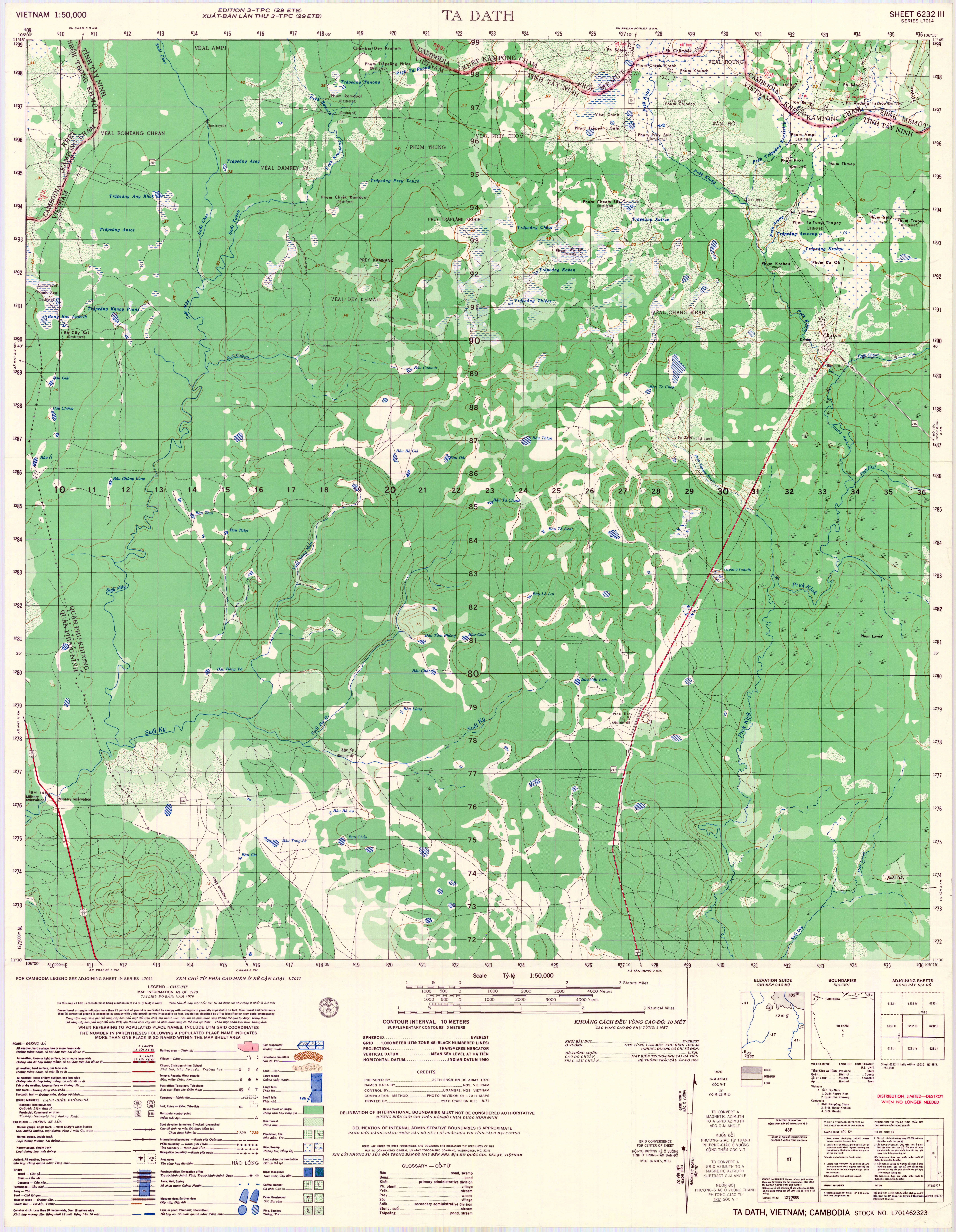

Ta Dath, Viet Nam (XT: 1072 to 3699)	TL70146232-III
Bien Hoa, Viet Nam (9289 to 1916)	TL70146330-I

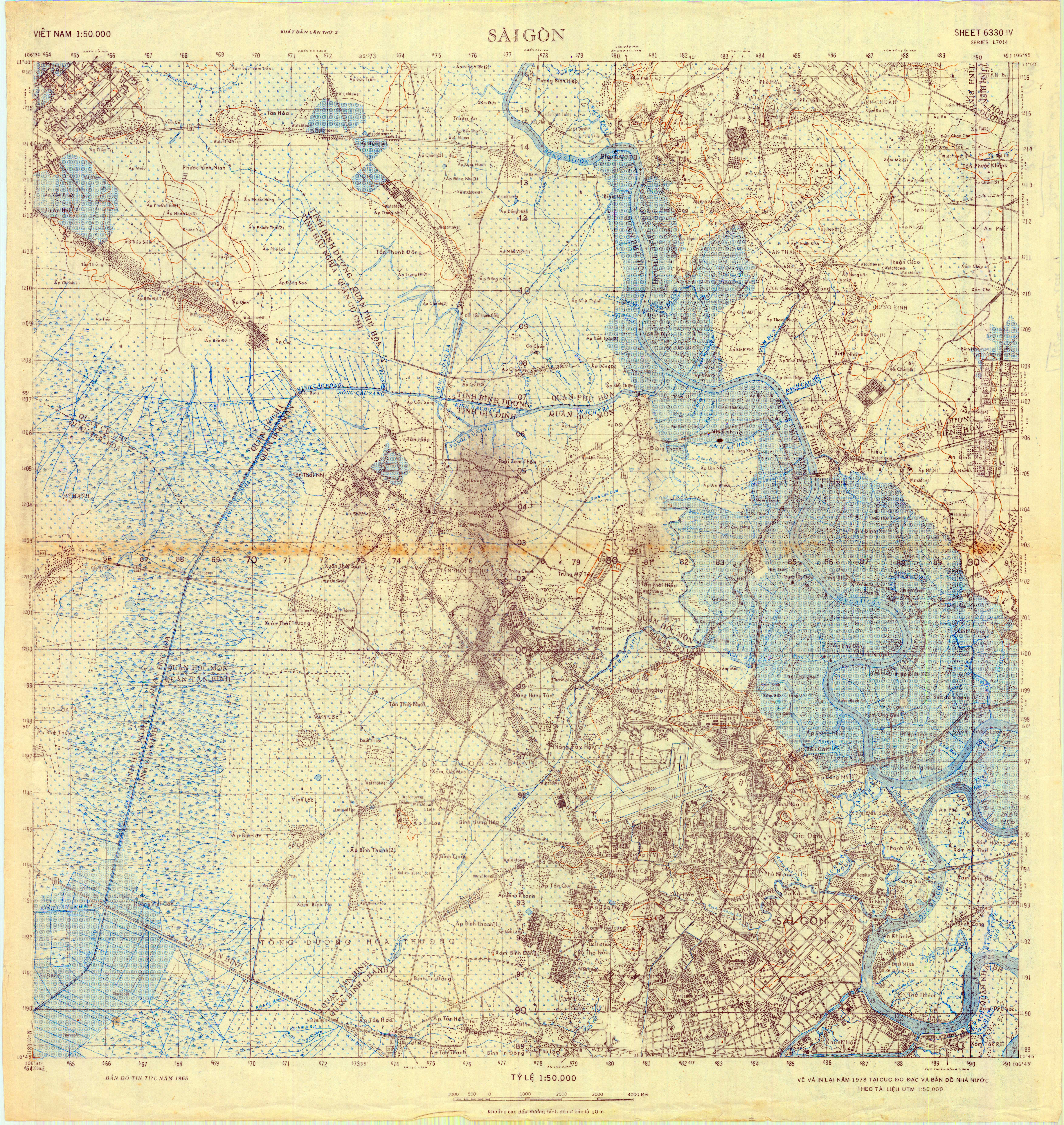

Saigon, Viet Nam (6489 to 9116)	TL70146330-IV

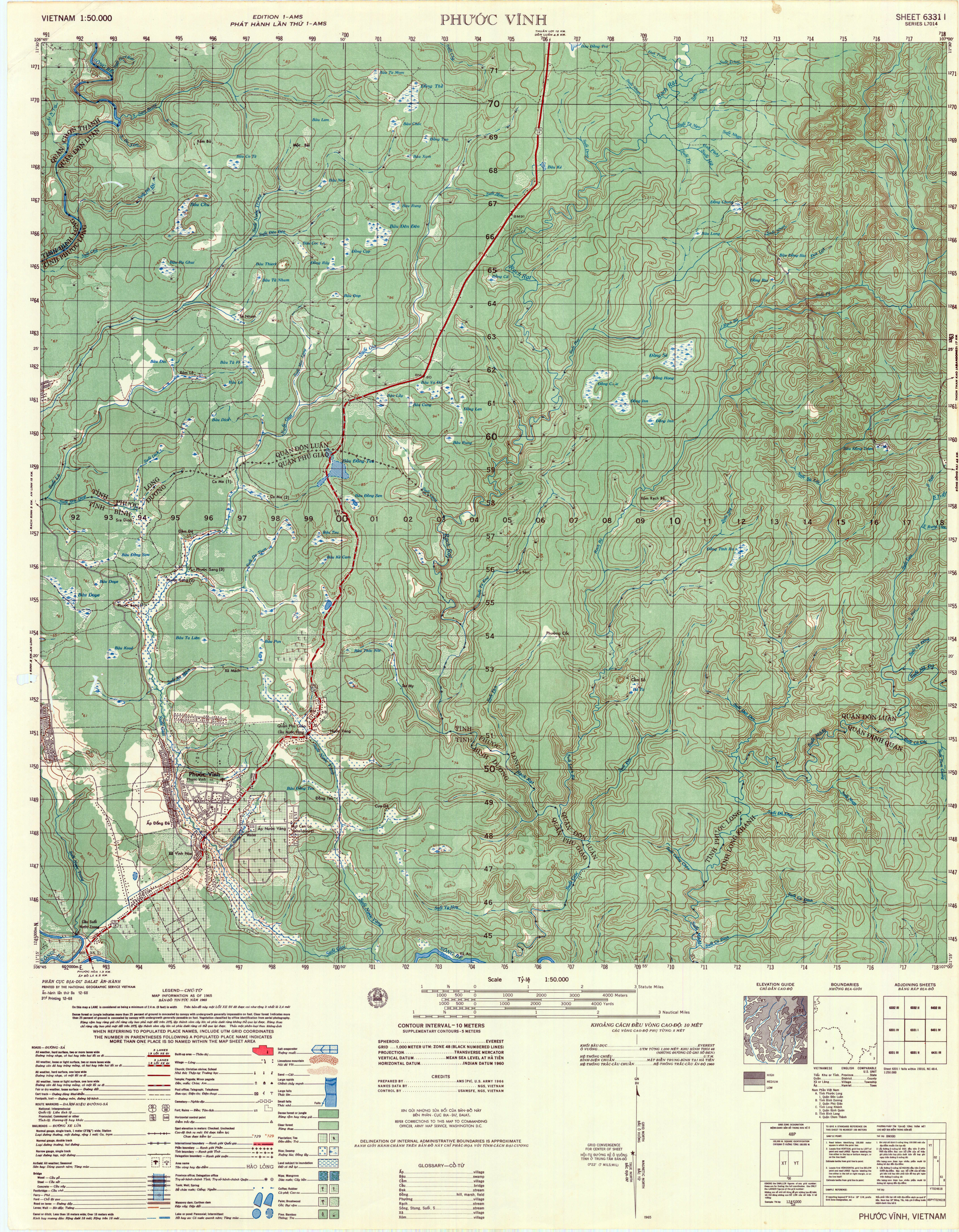

Phuoc Vinh, Viet Nam (XT on left, YT on right: 9245 to 1871)	TL70146331-I
Tan Uyen, Viet Nam (XT on left, YT on right: 9217 to 1844)	TL70146331-II

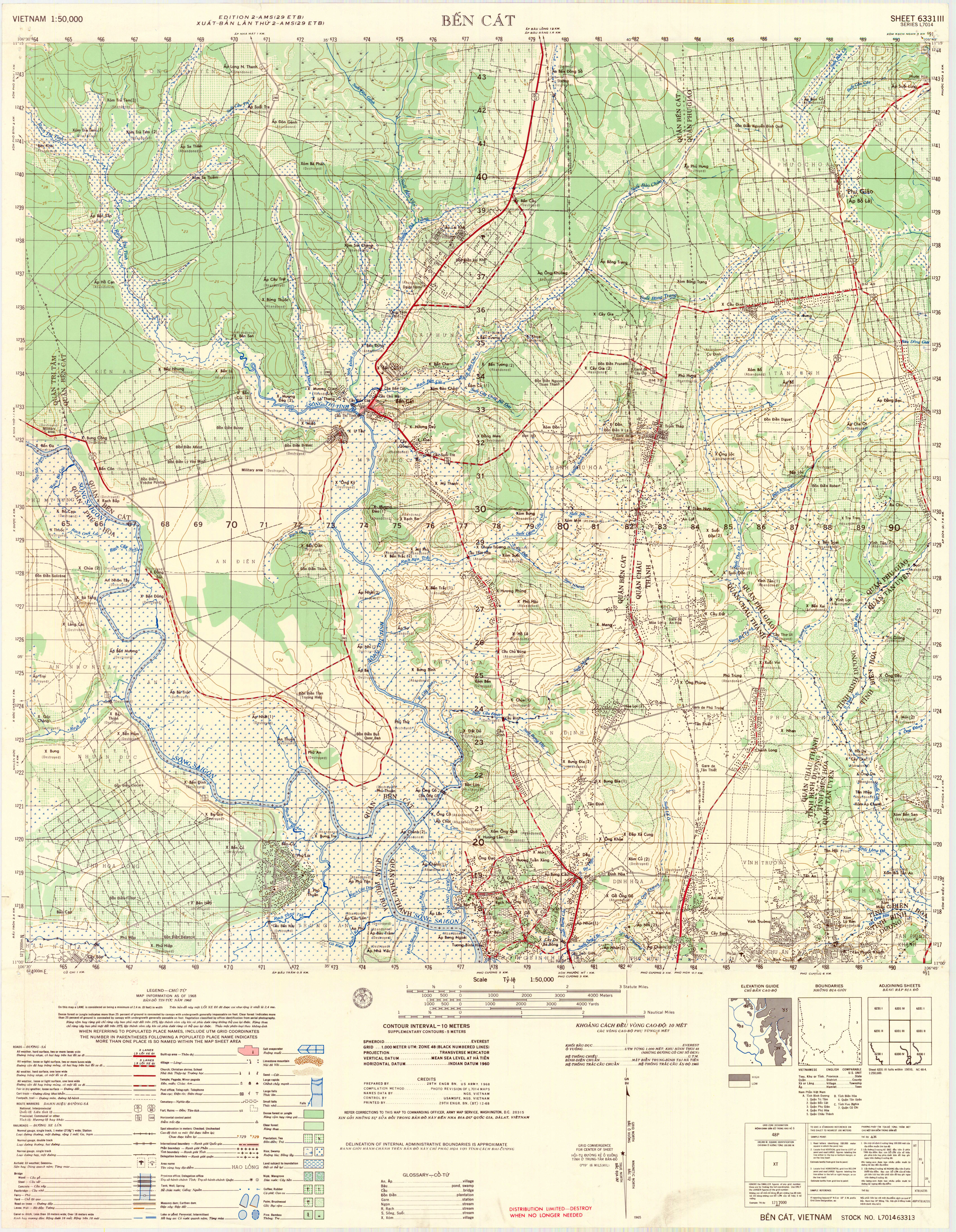

Ben Cat, Viet Nam (XT: 6417 to 9144)	TL70146331-III

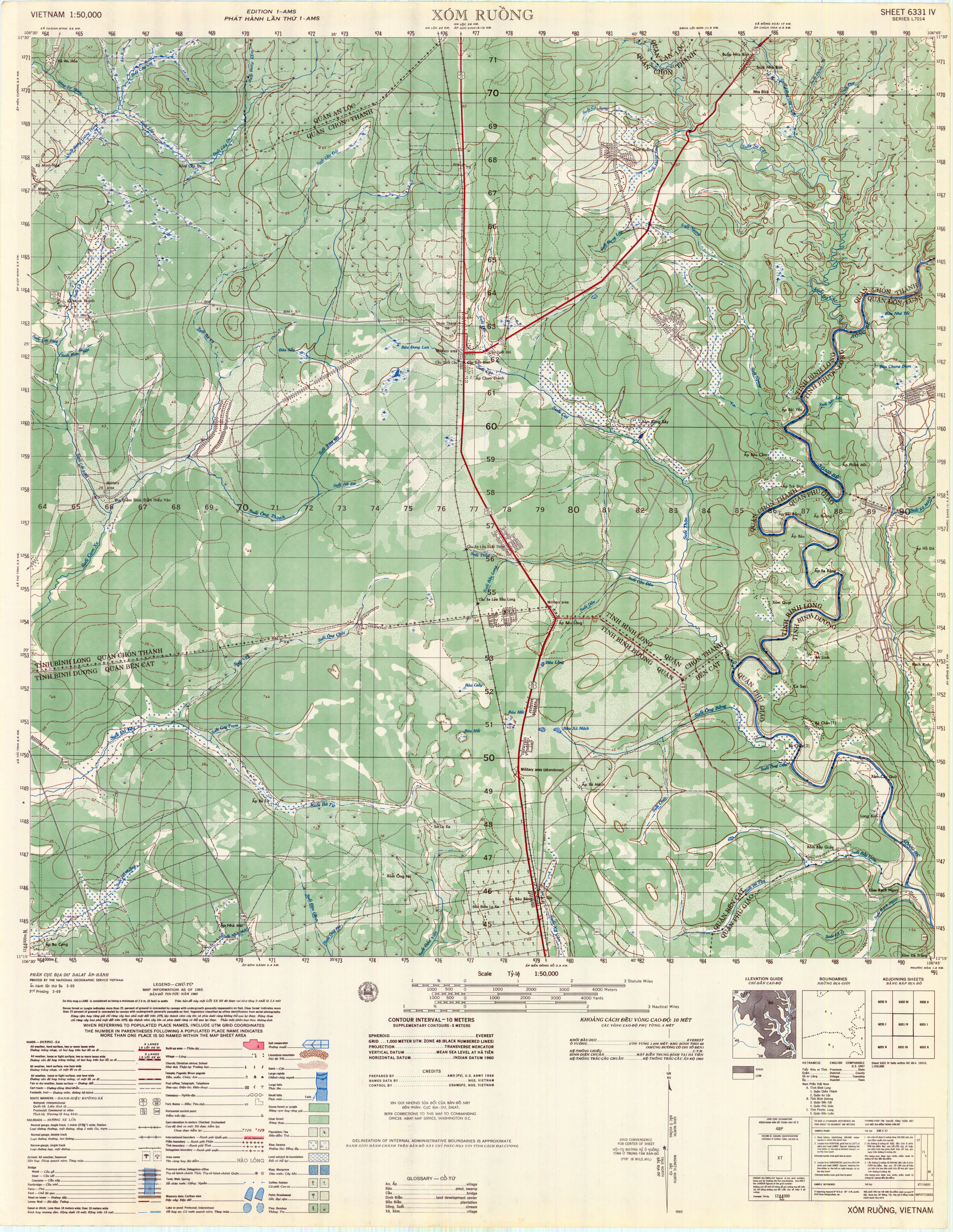

Xom Ruong, Viet Nam (XT: 6445 to 9171)	TL70146331-IV
Phuoc Binh, Viet Nam (XU on left, YU on right: 9100 to 1727)	TL70146332-I
Don Luan, Viet Nam (XT on left, YT on right: 9172 to 1899)	TL70146332-II
XA Cam My, Viet Nam (YT on top, YS on bottom: 4790 to 7317)	TL70146430-I

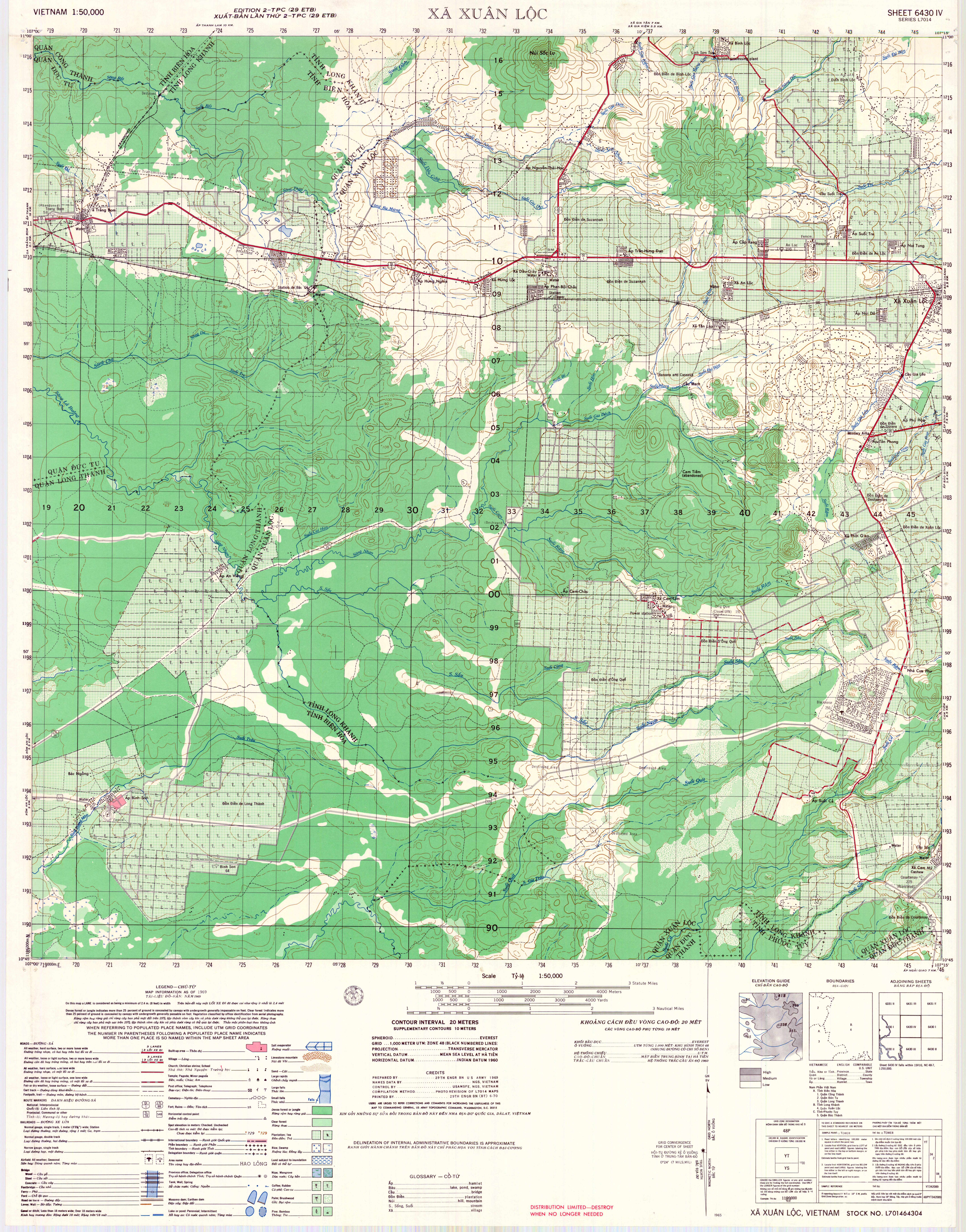

Xa Yuan Loc, Viet Nam (YT on top, YS on bottom: 1990 to 4616)	TL70146430-IV

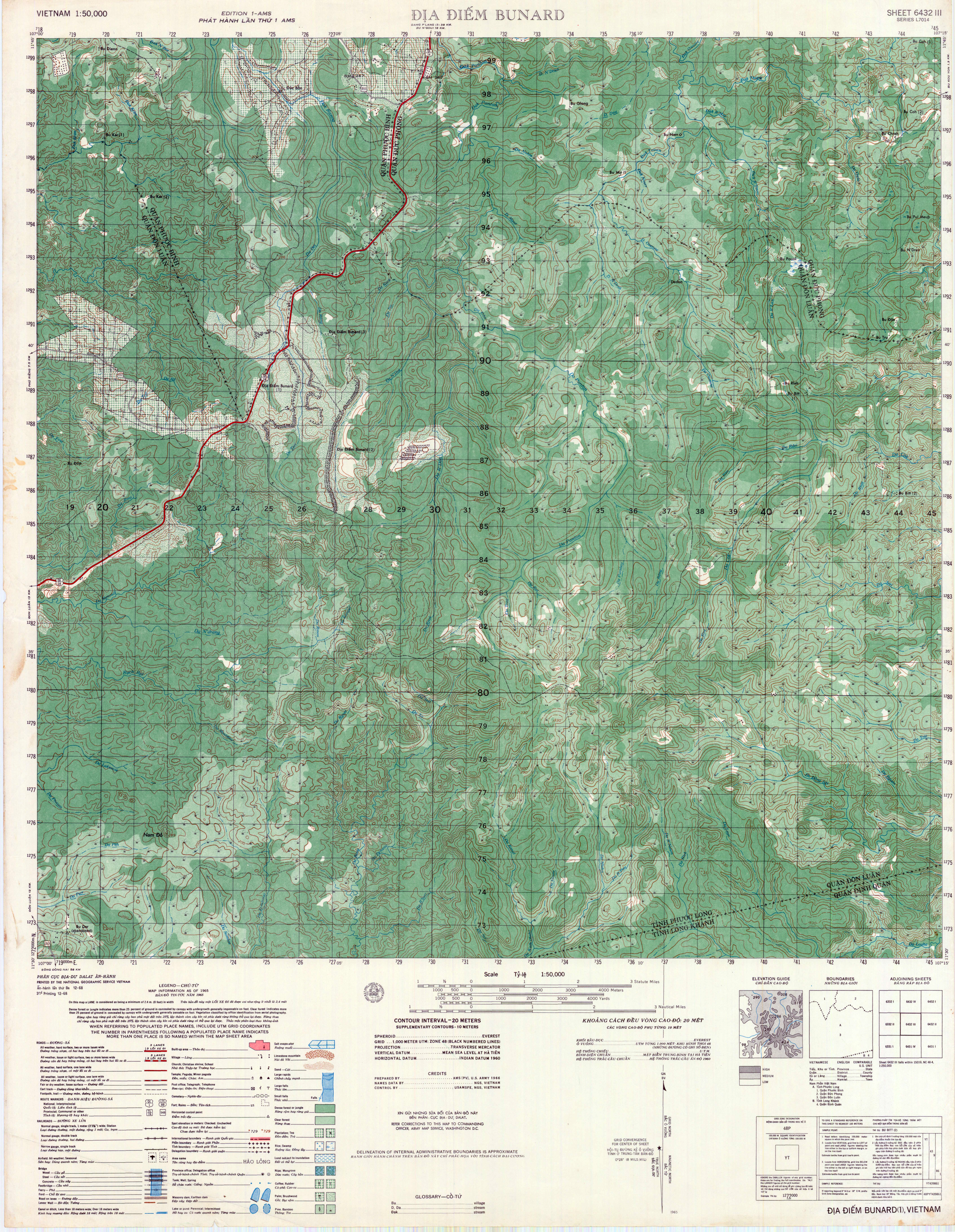

Dia Diem Bunard, Viet Nam (YT: 1973 to 4598)	TL70146432-III

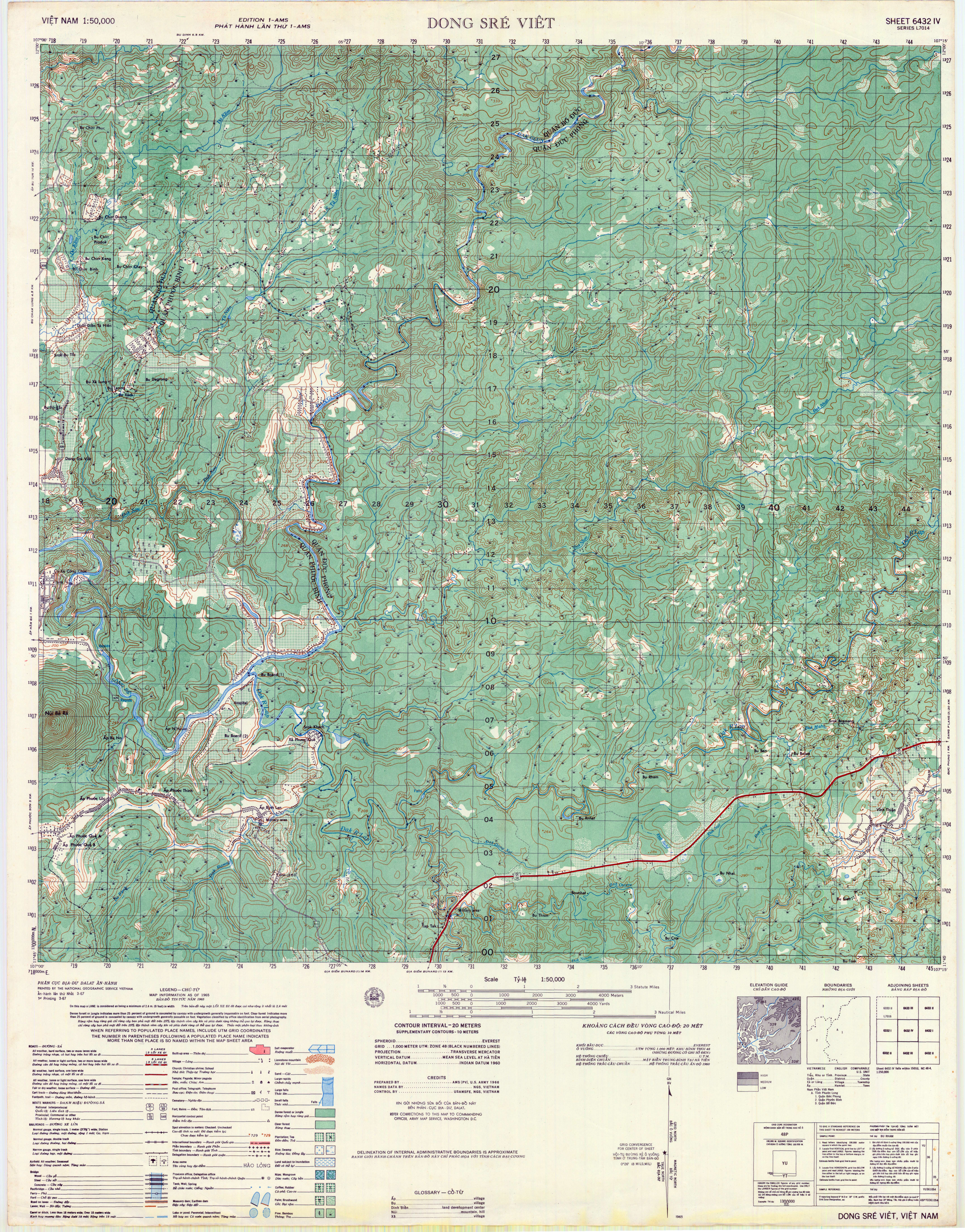

Dong Sre Viet, Viet Nam (YU on top, YT on bottom: 1900 to 4527)	TL70146432-IV

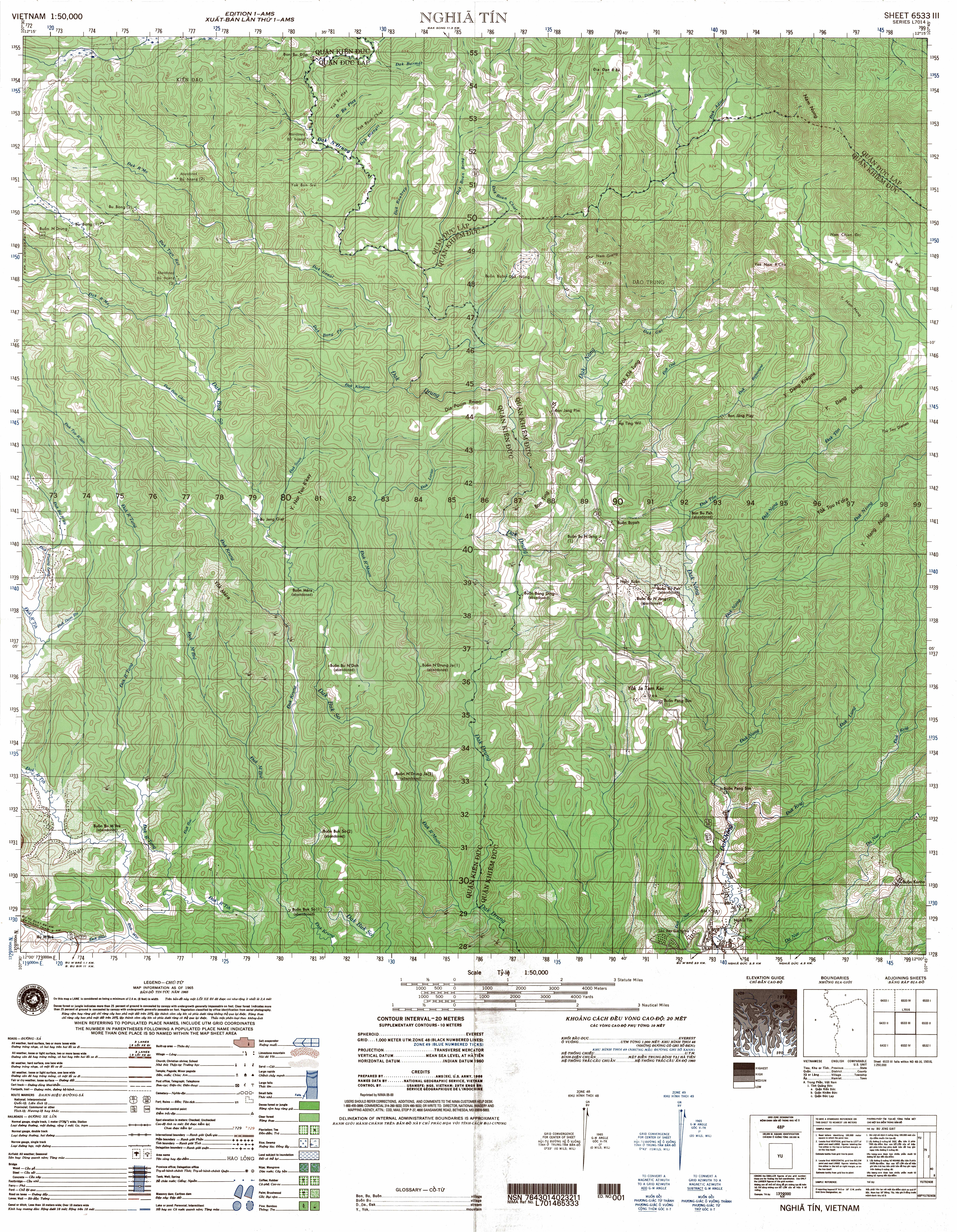

Nghia Tin, Viet Nam (YU: 7328 to 9955)	TL70146533-III
Dak To, Viet Nam (YB on left, ZB on right: 9706 to 2332)	TL70146538-II

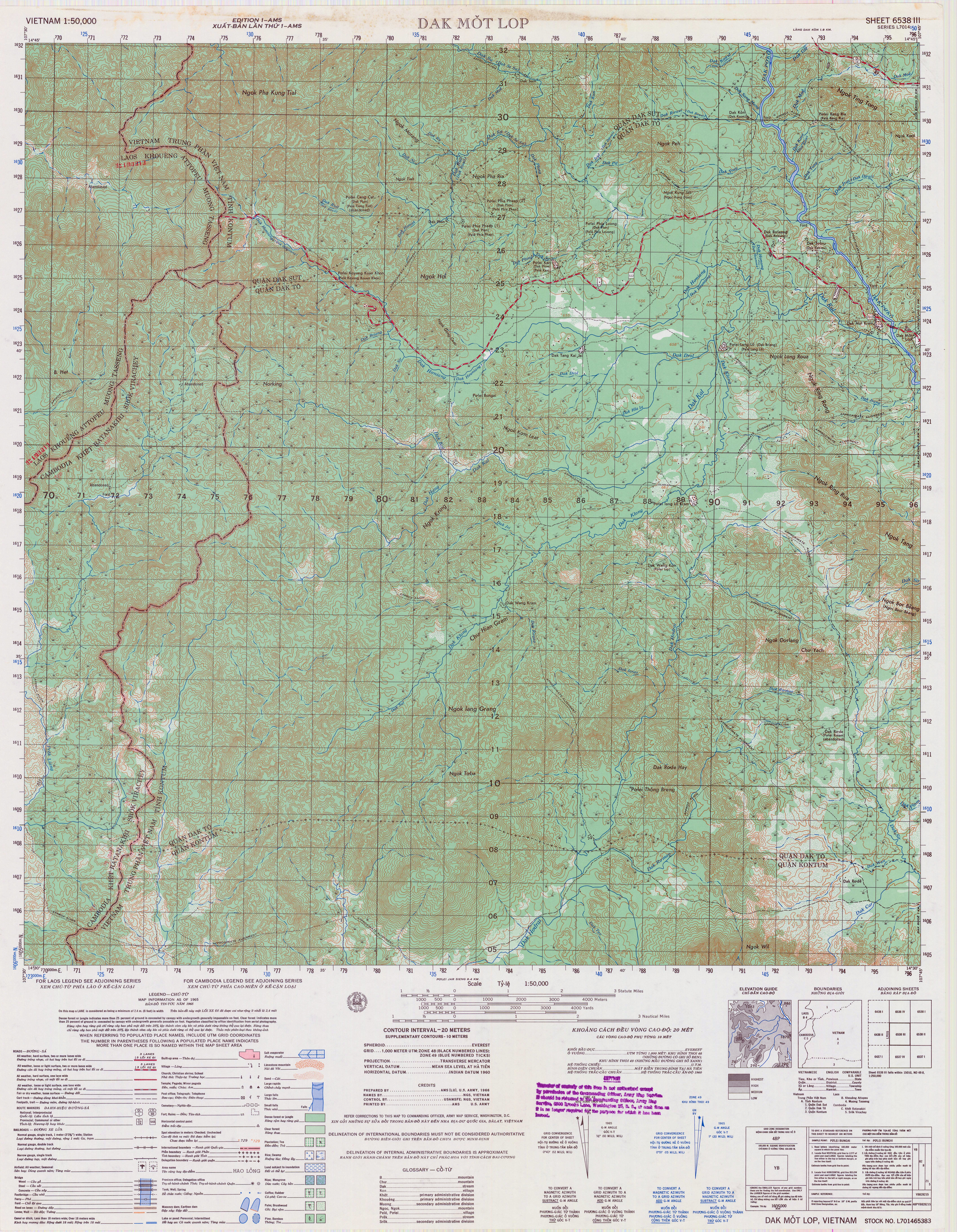

Dak Mot Lop, Viet Nam (YB: 7005 to 9632)	TL70146538-III
Mapsheets North 1968-1971 period

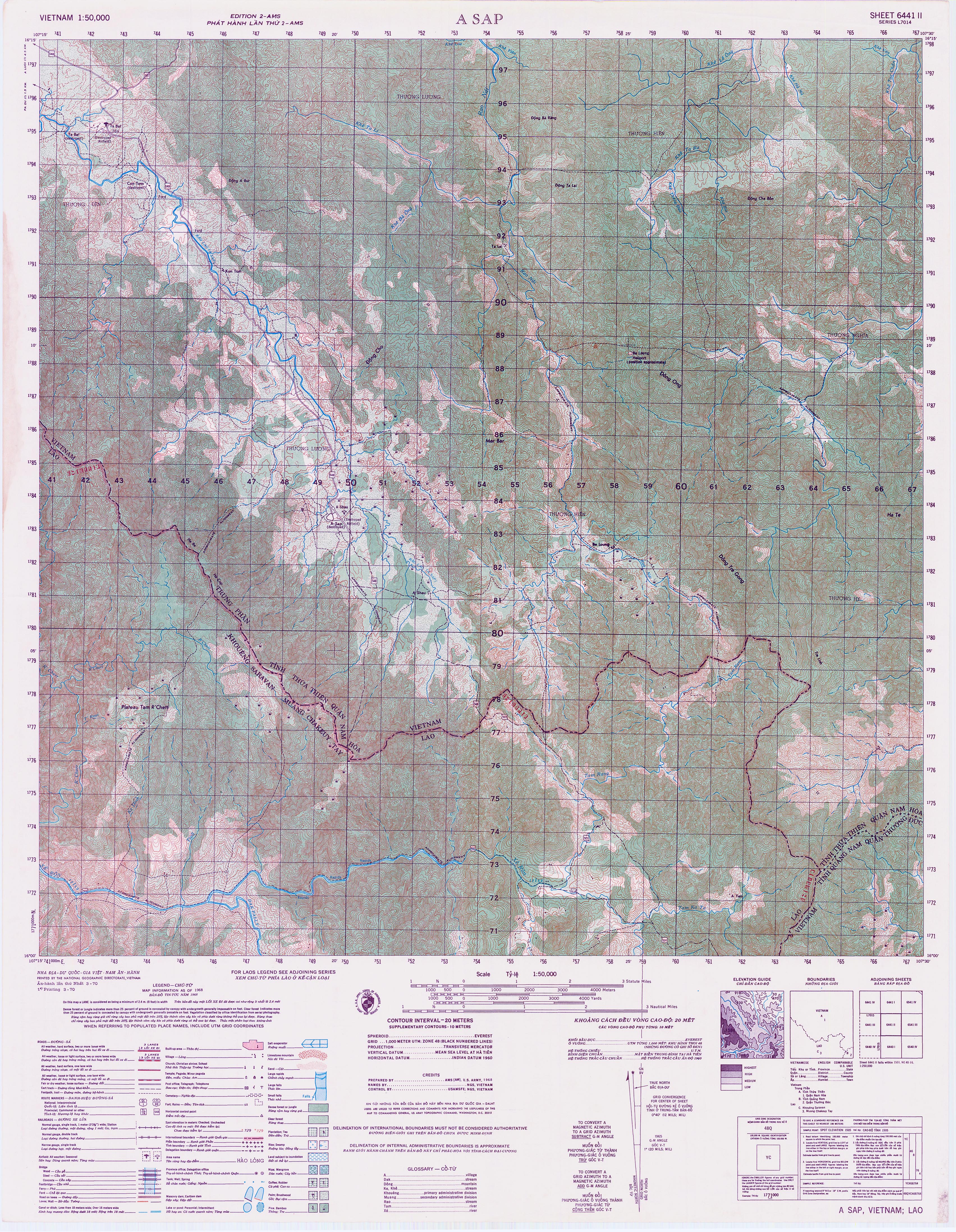

A Sap, Viet Nam (YC: 4170 to 6797)	TL70146441-II	61262

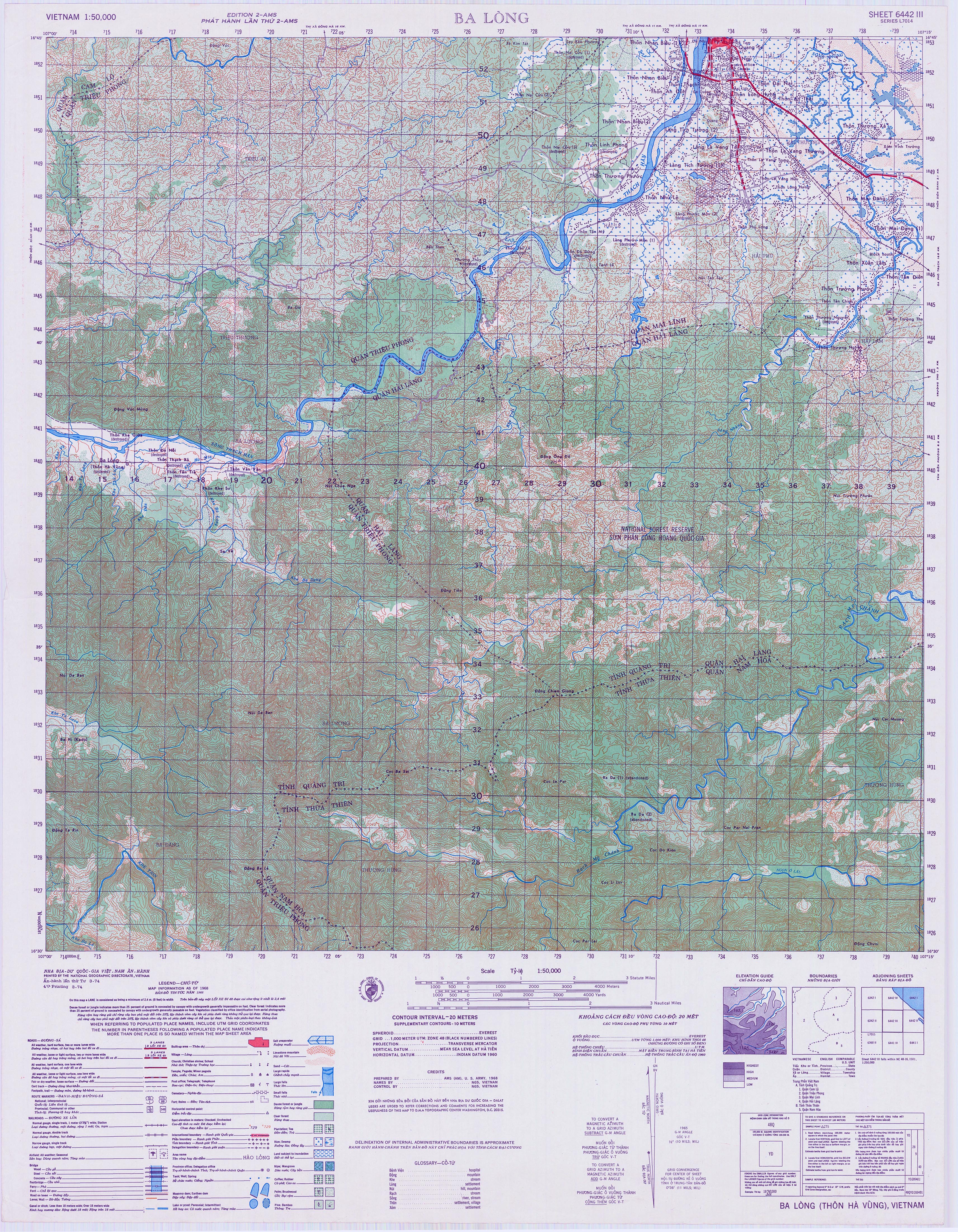

Ba Long (Thon Ha Vung), Viet Nam (YD: 1426 to 3953)	TL70146442-III	61267

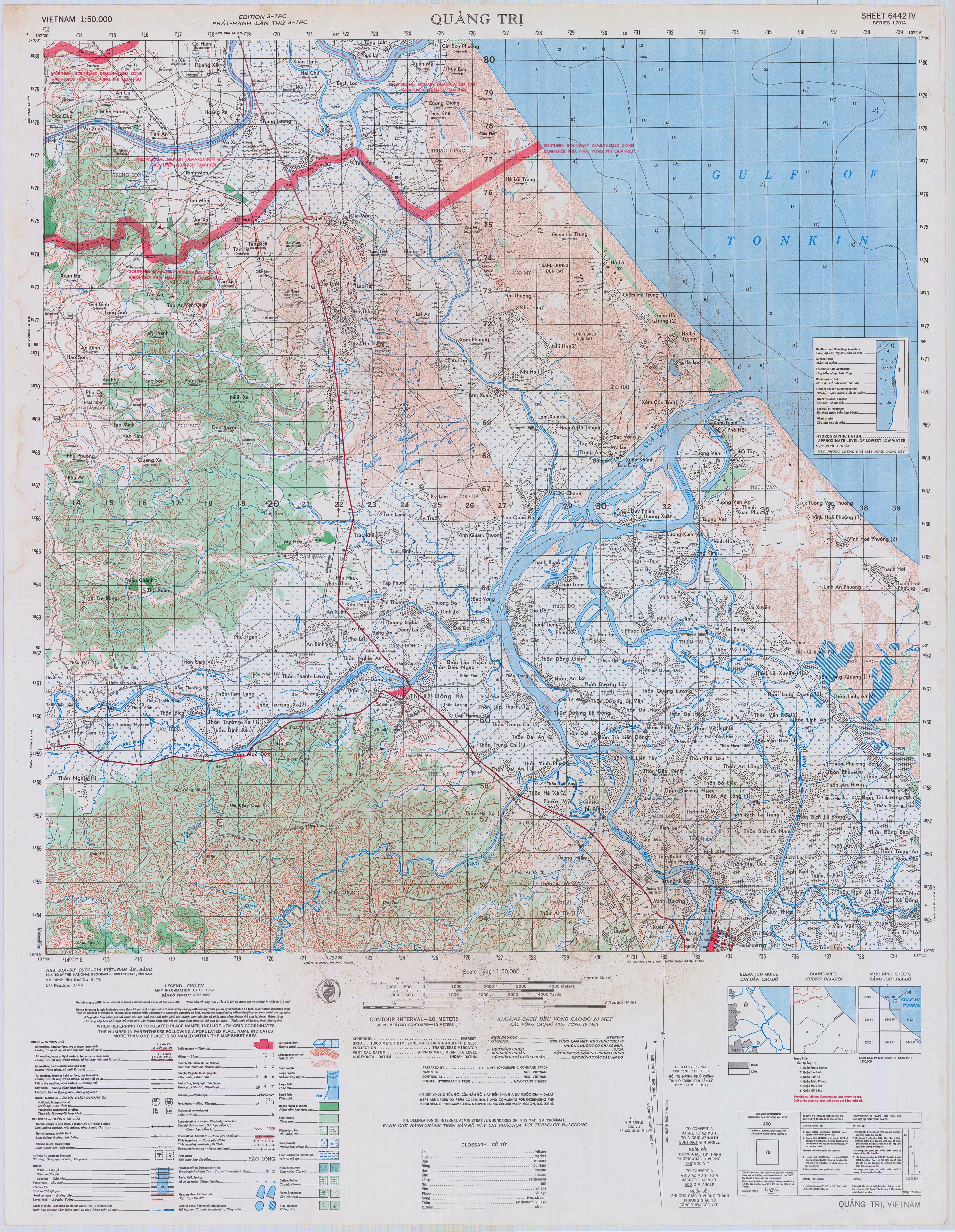

Quang Tri, Viet Nam (YD: 1453 to 3880)	TL70146442-IV	61268
Thon Ngo Xa Dong, Viet Nam (YD: 4080 to 6680 and 1498 to 6680)	TL70146442-I	61265

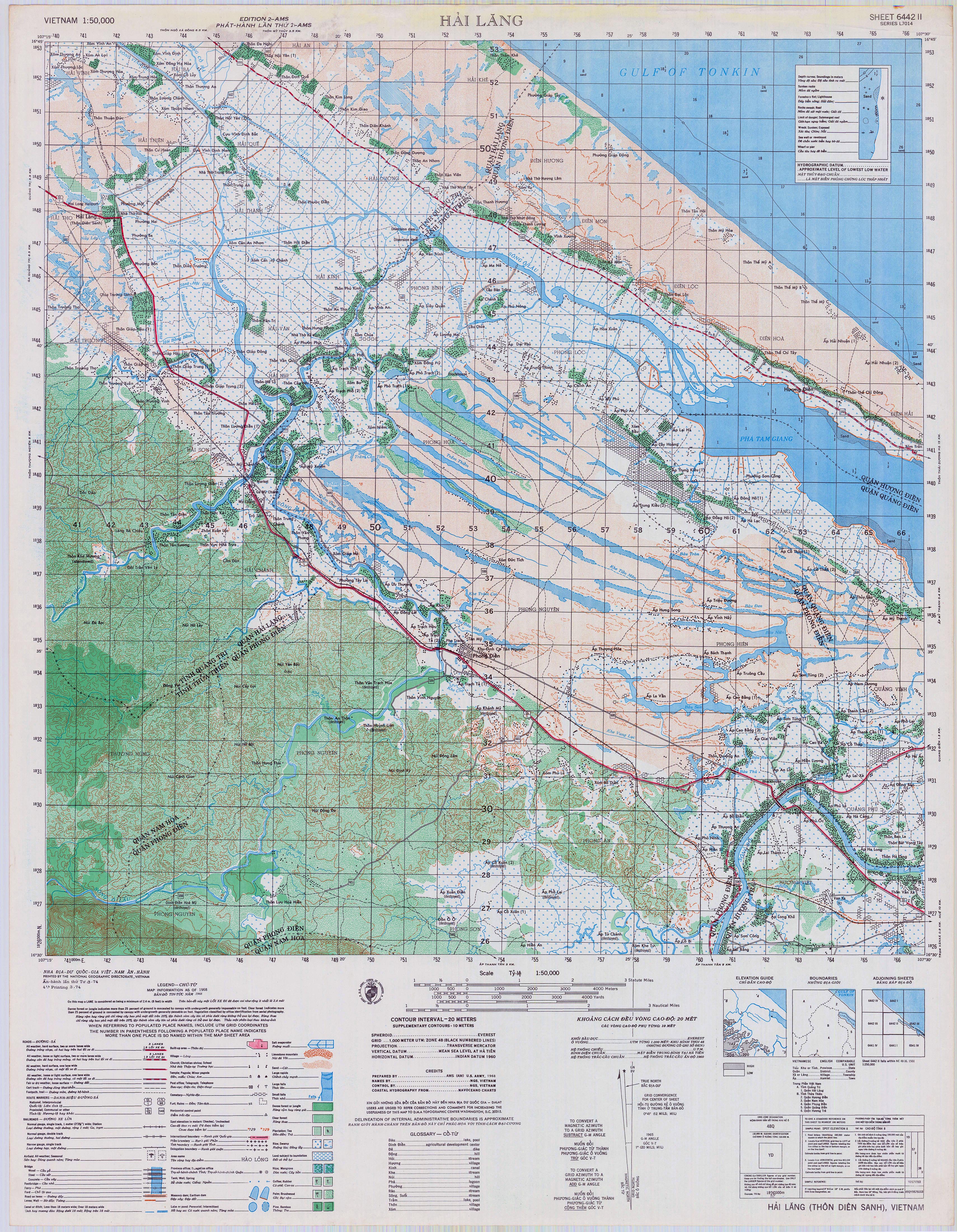

Hai Lang (Thon Dien Sanh), Viet Nam (YD: 4053 to 6653 and 4126 to 6626)	TL70146442-II	61266

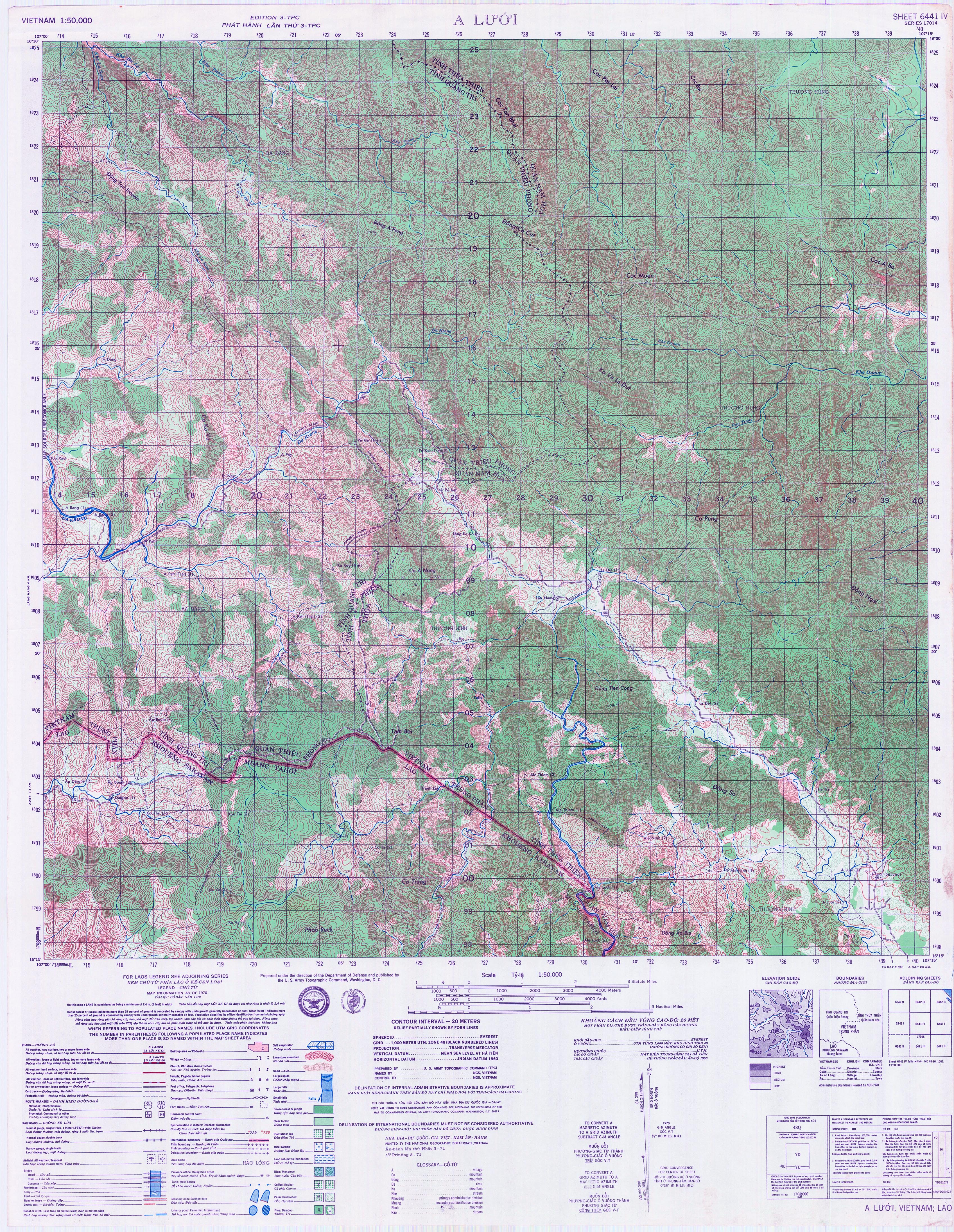

A Luoi, Viet Nam (YD on top and YC bottom: 1498 to 4025)	TL70146441-IV	61264
Cam Lo, Viet Nam (XD on left, YD on right: 8753 to 1280)	TL70146342-I	61211
Nong Truong Nam Dong, Viet Nam (YC: 6871 to 9398)	TL70146541-III	61325

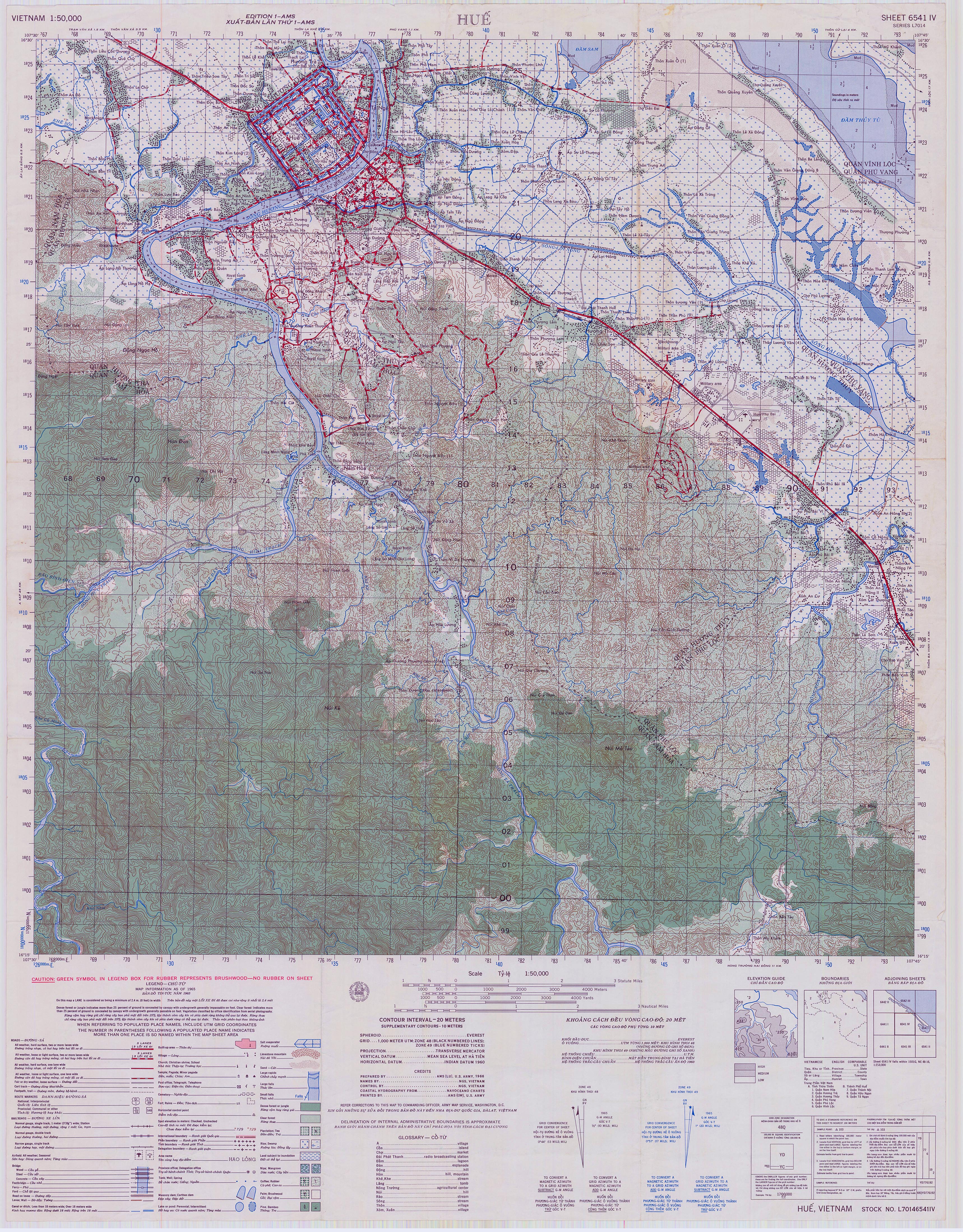

Hue, Viet Nam (YD on top, YC bottom: 6799 to 9325)	TL70146541-IV	61326

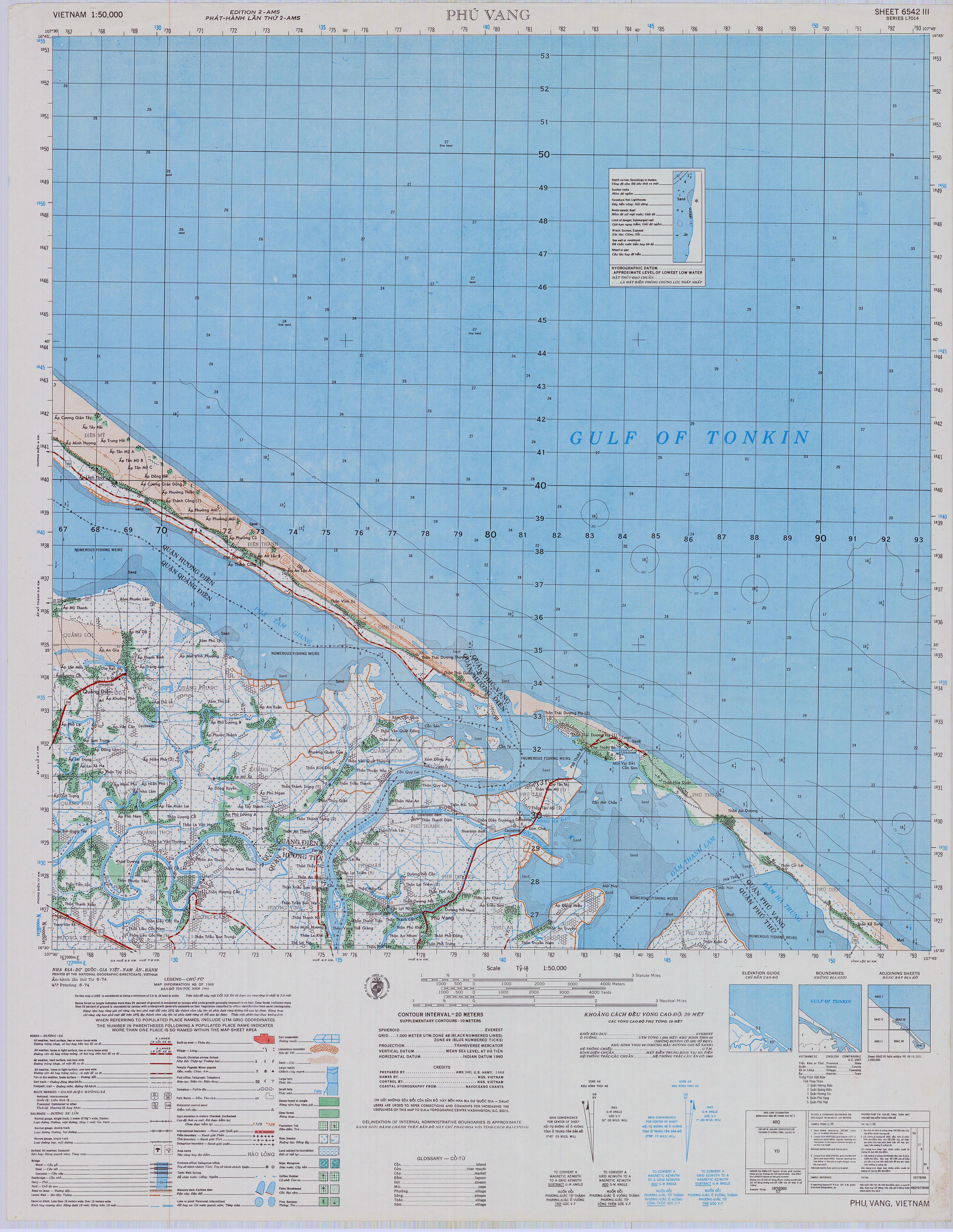

Phu Vang, Viet Nam (YD: 6726 to 9353)	TL70146542-III	61327

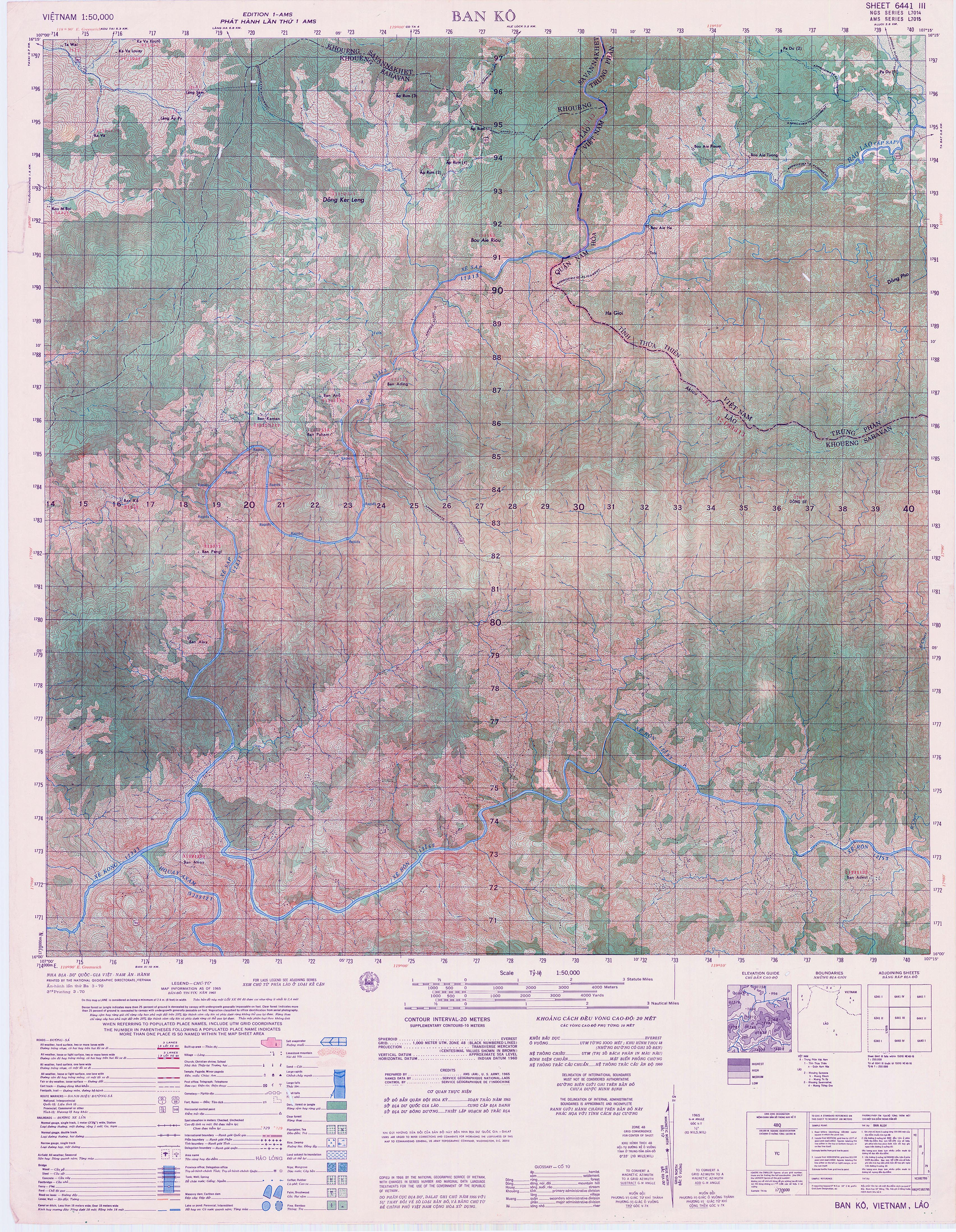

Ban Ko, Laos (YC: 1570 to 4097)	TL70156441-III	32991

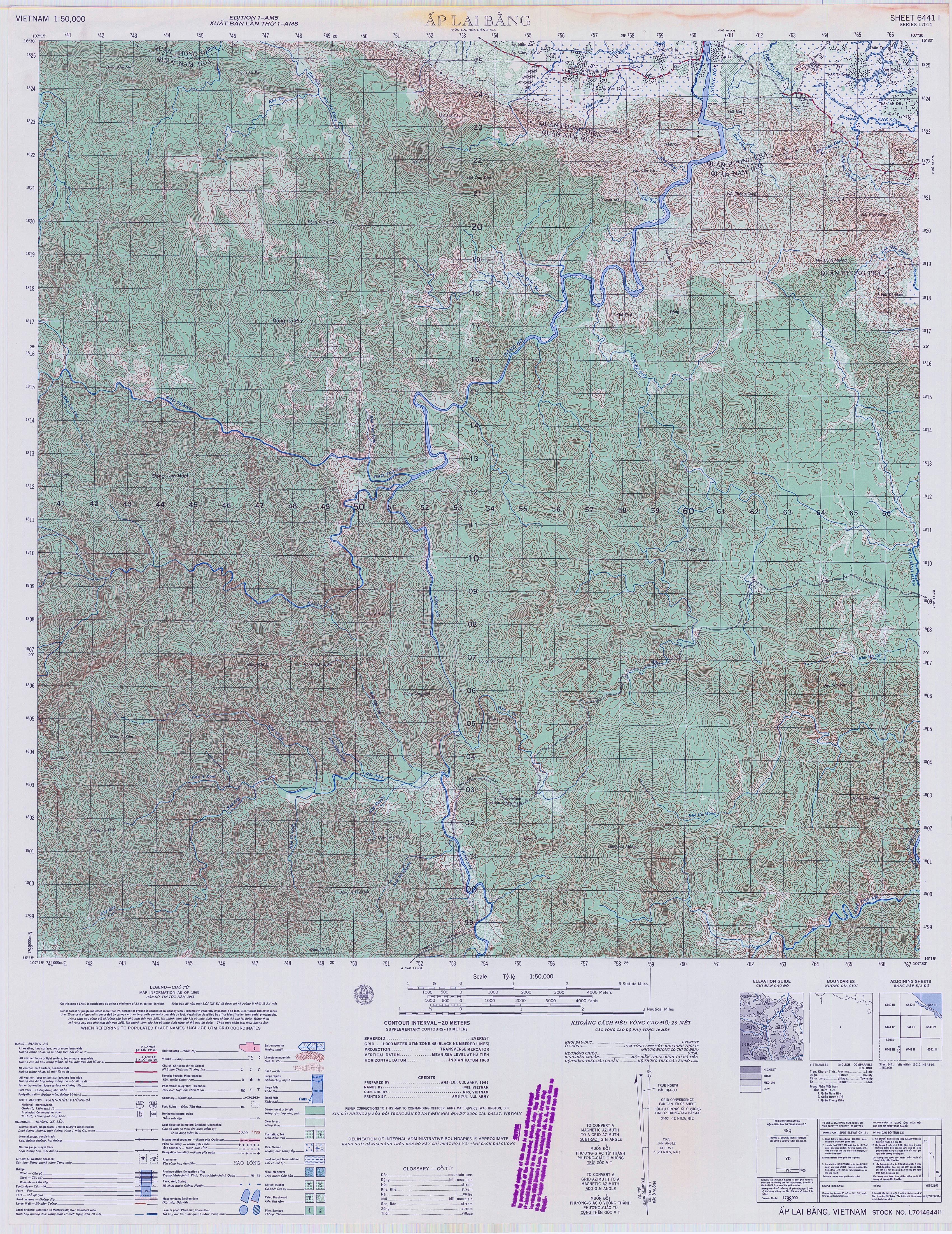

Ap Lai Bang, Viet Nam (YD on top, YC below: 4198 to 6625)	TL70146441-I	61261
